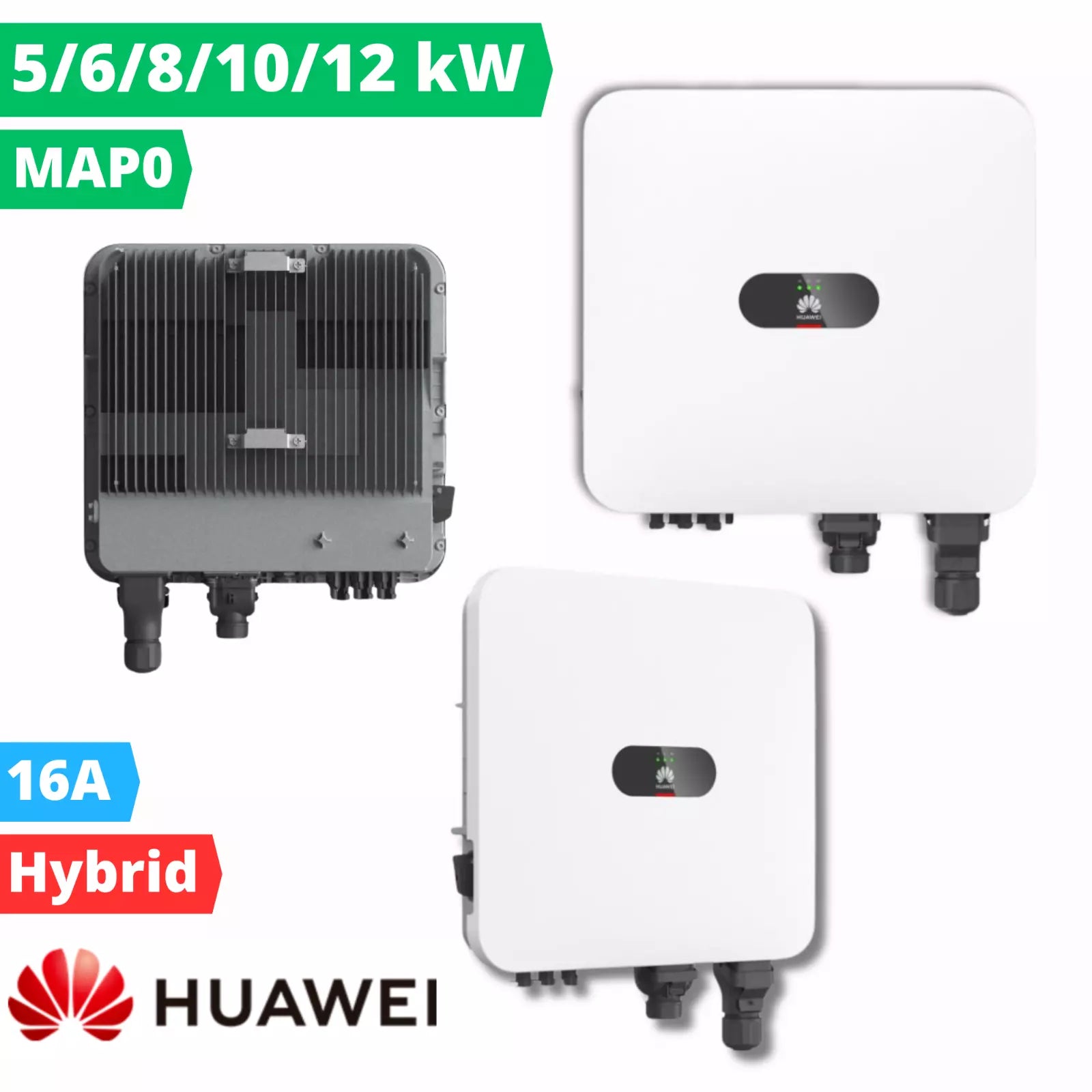

The The HUAWEI SUN2000-5-12K-MAP0 offers maximum efficiency with a peak efficiency of up to 98.2%. The flexible power output from 5kW to 12kW makes the device versatile and allows for adaptation to individual needs – whether for small households or large commercial properties.

With an operating temperature of -25°C to +60°C and IP66 protection, it is dust and water resistant. Its compact design and weight of 21 kg make it easy to handle.

The SUN2000 features a plug-and-play battery interface compatible with HUAWEI Smart String ESS batteries and the Huawei Sun2000-450W-P2 and 600W-P optimizers. The model is compatible with the Huawei Smart Energy Controller and supports optimized feed-in control. It features 98.2% efficiency, active arc fault prevention (AFCI) technology, and DC and AC surge protection for maximum safety.

The Huawei Smart Meter can be connected via RS485 and provides information about household consumption and grid feed-in.

Advantages of Huawei SUN2000-5-12K-MAP0:

✅ Active safety : AFCI and plug temperature detection
✅ Highly efficient inverter topology, max. efficiency 98.2%
✅ 3-phase asymmetric load
✅ Suitable for high-current solar modules

Common technical data:

• Max. efficiency : 98.6%
• European efficiency : 98.2%
• Number of MPP trackers : 2
• Max. number of inputs per MPPT : 1
• Max. DC input voltage : 1,100 V
• Max. input current per MPPT : 16 A
• Protection class : IP66
• Cooling : Natural convection
• Battery compatibility : HUAWEI LUNA2000-S0, LUNA2000-S1

SUN2000-5K-MAP0

• Rated power : 5 kW
• Max. output current : 20.2 A
• Recommended PV power : 22,000 Wp


SUN2000-6K-MAP0

• Rated power : 8.3 kW
• Max. output current : 10 A
• Recommended maximum PV power : 9,000 Wp


SUN2000-8K-MAP0

• Rated power : 8 kW
• Max. output current : 13.3 A
• Recommended PV power : 14,600 Wp


SUN2000-10K-MAP0

• Rated power : 10 kW
• Max. output current : 16.7 A
• Recommended PV power : 18,000 Wp


SUN2000-12K-MAP0

• Rated power : 12 kW
• Max. output current : 20.2 A
• Recommended PV power : 22,000 Wp
