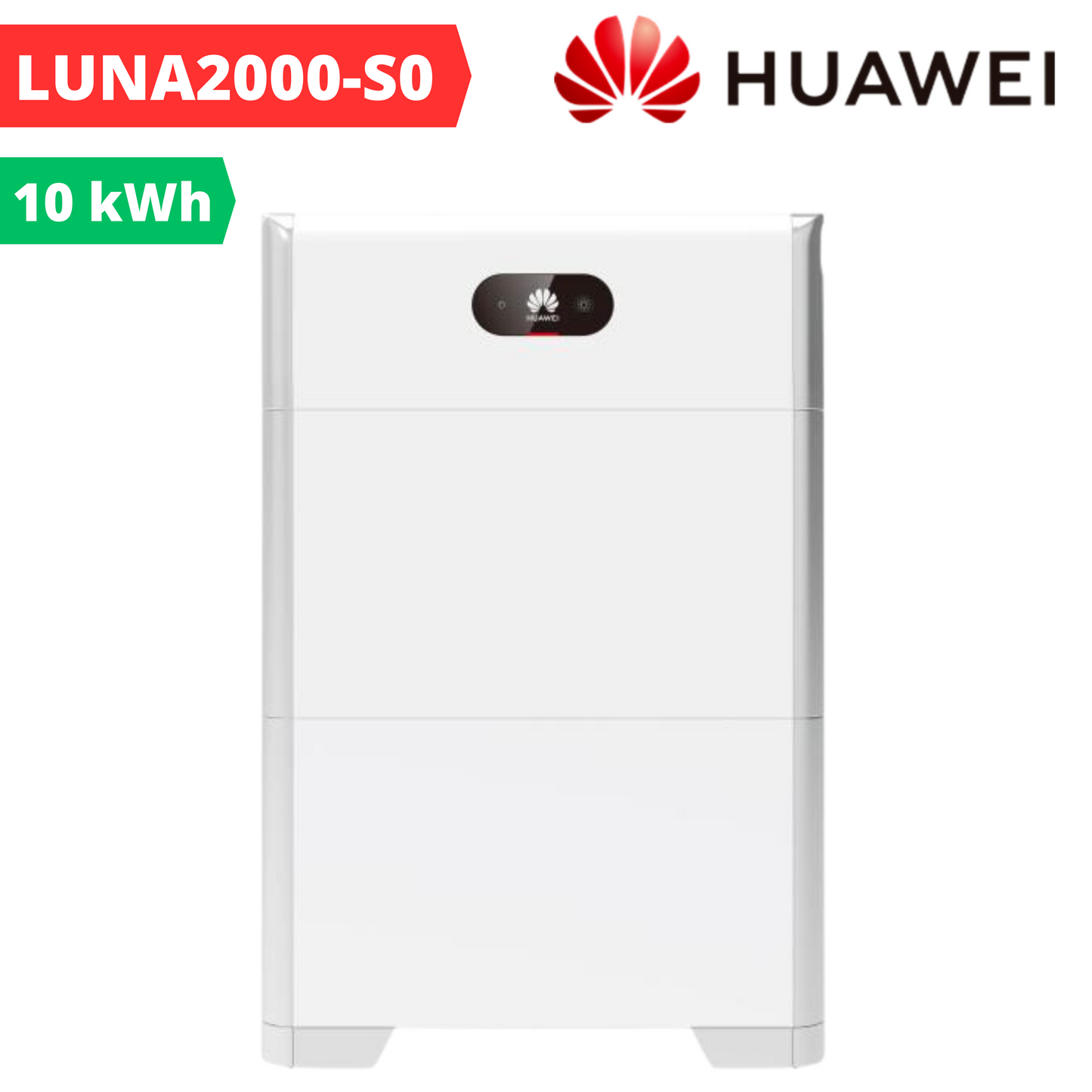

Huawei LUNA2000-S0 is an expandable battery storage system with a modular design, offering capacities from 5 to 30 kWh* and 100% usable capacity. Lithium iron phosphate cells ensure safe and reliable operation. The modules operate independently and are easy to install. The system is compatible with single- and three-phase Huawei inverters.

Common technical data:

• Operating temperature : -20°C to +55°C
• Rated voltage (1-phase WR/L1) : 450 V
• Operating voltage range (1-phase WR/L1) : 350 - 560 V
• Rated voltage (3-phase WR/M1) : 600 V
• Operating voltage range (3-phase WR/M1) : 600 - 980 V
• Protection class : IP66

• Model : Smart ESS Battery

LUNA2000-5-S0

• Capacity : 5 kWh
• Max. charge/discharge current : 2.5 kW
• Dimensions : 670 x 150 x 480 mm
• Weight : 50 kg

LUNA2000-10-S0

• Capacity : 10 kWh
• Max. charge/discharge current : 5 kW
• Dimensions : 670 x 150 x 920 mm
• Weight : 100 kg

LUNA2000-15-S0

• Capacity : 15 kWh
• Max. charge/discharge current : 7.5 kW
• Dimensions : 670 x 150 x 1360 mm
• Weight : 150 kg

*The battery capacity of the Huawei LUNA2000-S0 is modularly expandable. Up to two power management modules can be connected in parallel , with each power management module supporting a maximum of three battery expansion modules . The capacity can be increased from 5 kWh to 30 kWh. Depending on the configuration, the modules are connected with signal cables and DC input cables to achieve greater capacity.
