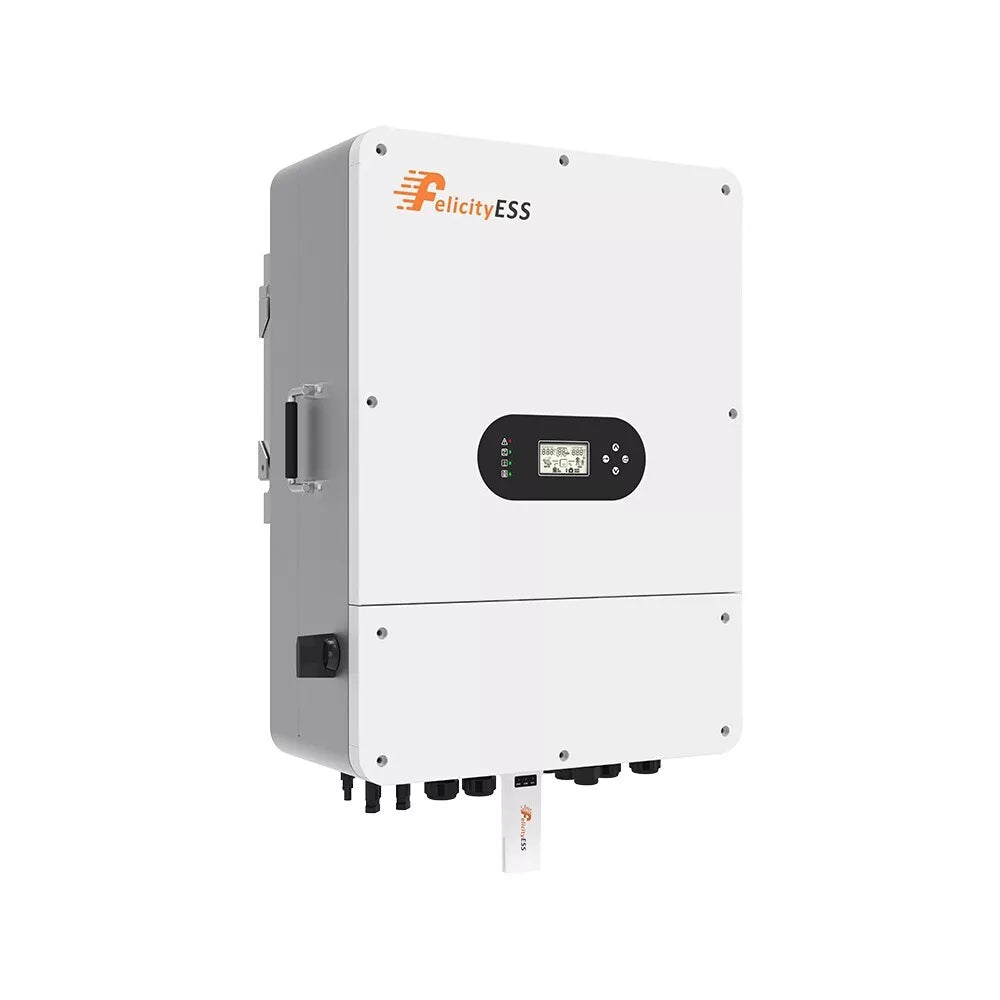

Felicity Solar Inverter 10 kW

T-REX-10KLP3G01

Eco, Smart, Sustainable

✅ 10 kW ✅ Low voltage ✅ 51.2 V ✅ Hybrid

The Felicity T-REX-10KLP3G01 is a versatile hybrid inverter for grid-connected and off-grid solar systems. With 10 kW output power and up to 13 kWp PV input power, it ensures efficient use of solar energy and significantly reduces grid power requirements.

Thanks to two MPPT trackers, energy yield is optimized even under varying module conditions. The integrated lithium battery activation function automatically reactivates deeply discharged batteries, thus protecting your batteries for the long term.

The integrated UPS function ensures uninterruptible power supply in the event of a power outage. Additionally, the device supports asymmetric load sharing , allowing efficient power supply even for single-phase loads.

A robust IP65 housing reliably protects against dust and water—ideal for indoor and outdoor use. The integrated Wi-Fi/GPRS interface enables remote monitoring and control in real time at any time.

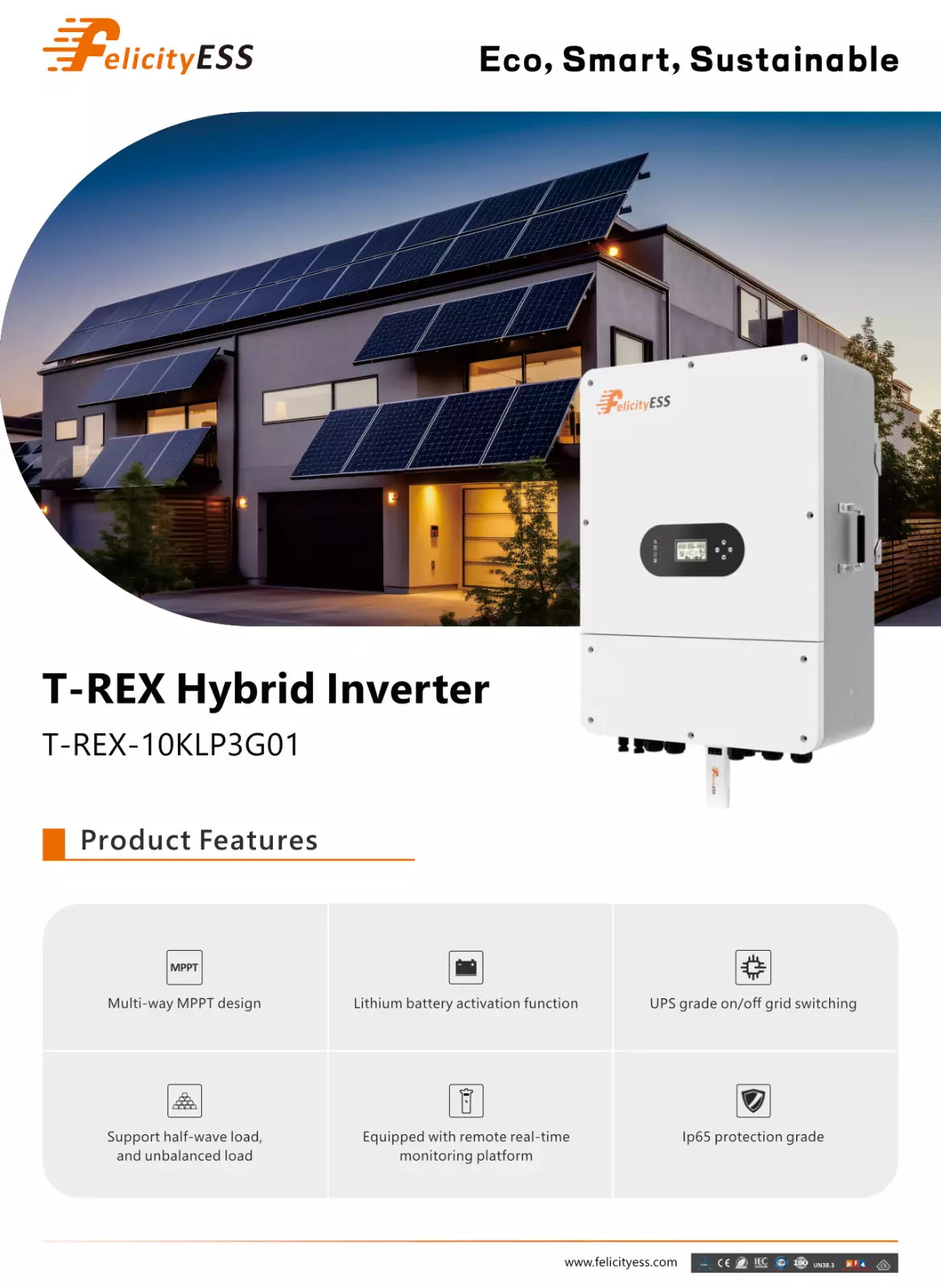

⚡ Multi-channel MPPT design
For more precise and efficient solar power processing

🔋 Lithium battery activation function
Starts deeply discharged batteries safely and reliably

🔄 UPS-capable mains switching mode
Seamless switching between mains and battery operation

🔌 Supports asymmetric loads
Ideal for households with uneven load distribution

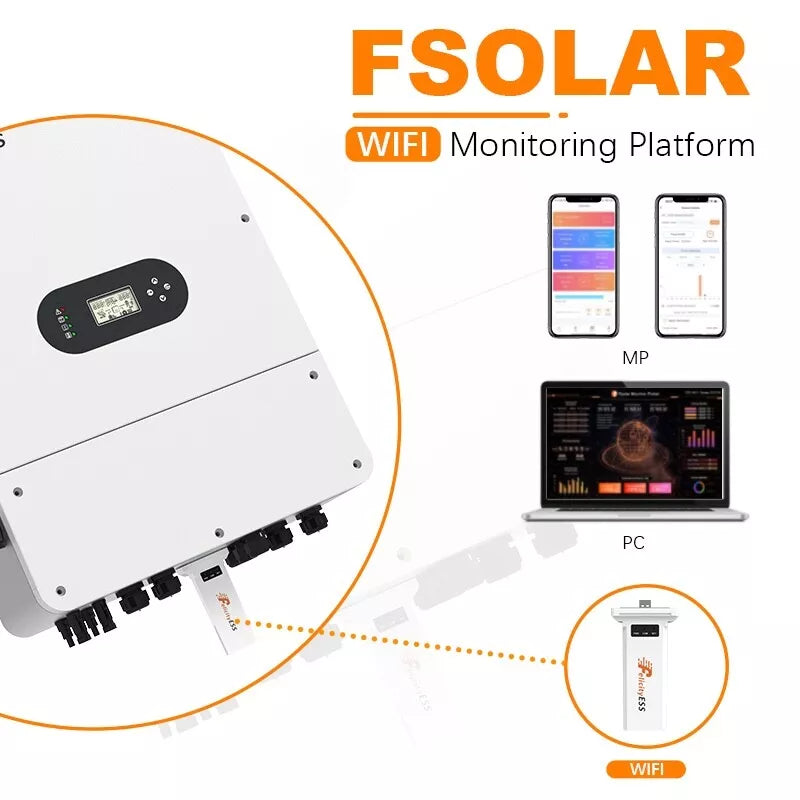

📶 Real-time monitoring platform
Remote access to all system data

💧 Protection class IP65
Dustproof and splash-proof – perfect for indoor and outdoor use

🕒 Long warranty period
10-year manufacturer's warranty

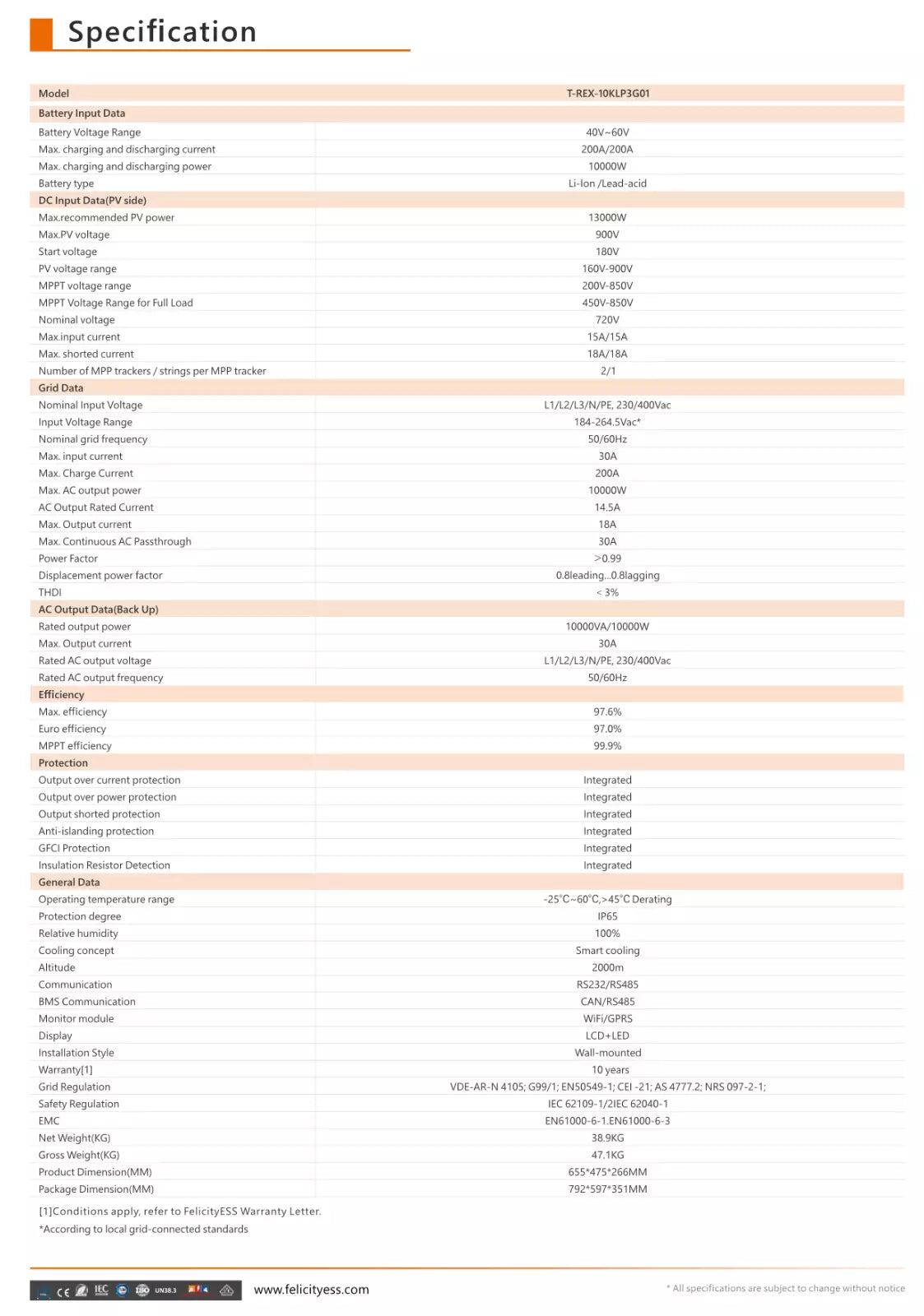

Technical details

Battery side:

• Battery types: lithium-ion / lead-acid
• Battery voltage range: 40 – 60 V
• Max. charge/discharge current: 200 A
• Max. charge/discharge power: 10,000 W

PV side (DC input):

• Max. recommended PV power: 13,000 W
• Max. PV voltage: 900 V
• MPPT voltage range: 200 – 850 V
• MPPT voltage range for full load: 410 – 850 V

• Nominal input voltage: 600 V

• Starting voltage: 180 V
• Max. input current per MPPT: 15 A

• Max. short-circuit current per MPPT: 18 A

• Number of MPPT trackers/strings: 2 / 1


AC output (on-grid):

• Rated voltage: 230 / 400 Vac (3-phase)
• Frequency range: 50 / 60 Hz
• Voltage range: 184 – 264.5 V
• Max. output power: 10,000 W
• Rated AC output current: 14.5 A

• Max. output current: 18 A

Efficiency:

• Efficiency (max.): 97.6%
• Euro efficiency: 97.0%
• MPPT efficiency: 99.9%

Generally:

• Communication: RS485, CAN, Wi-Fi, GPRS
• Protection class: IP65
• Operating temperature: –25 °C to +60 °C (power reduction from 45 °C)
• Cooling: Intelligent fan control
• Weight: approx. 38.9 kg
• Dimensions: 655 × 475 × 266 mm (W×H×D)
• Mounting: Wall mounting
• Warranty: 10-year manufacturer's warranty

For further technical data, please refer to the product data sheet

Scope of delivery

• 1x Felicity ESS T-REX-10KLP3G01 10kW

----------------------------------------------------------------------------------------

Felicity Solar is an internationally experienced manufacturer focused on modern, sustainable energy solutions. Since 2007, the company has been developing innovative PV technology and energy storage solutions for customers worldwide.

----------------------------------------------------------------------------------------

* Exemption from VAT 2023 Section 12 Paragraph 3 UStG for PV

• The price for this offer includes 0% VAT and is valid exclusively for sales to private individuals from Germany.

• For companies, 19% VAT applies.
• For international sales, the VAT rate of the destination country applies.
