Our mounting kits are based on extensive experience and are designed for the average amount of material required for the installation of 10 to 40 solar modules.
For special requirements such as higher loads, cross mounting or three-rail systems, additional material may be required, which can be ordered separately.

We recommend planning a basic set of components (e.g. a set for 20 modules) so that you can respond flexibly to additional requirements during on-site assembly.

Our focus is on simple, quick installation as well as universal applicability for many roof and tile types with just a few different hook designs.
All other components such as rails and connectors are compatible across systems and fit all our hook types.

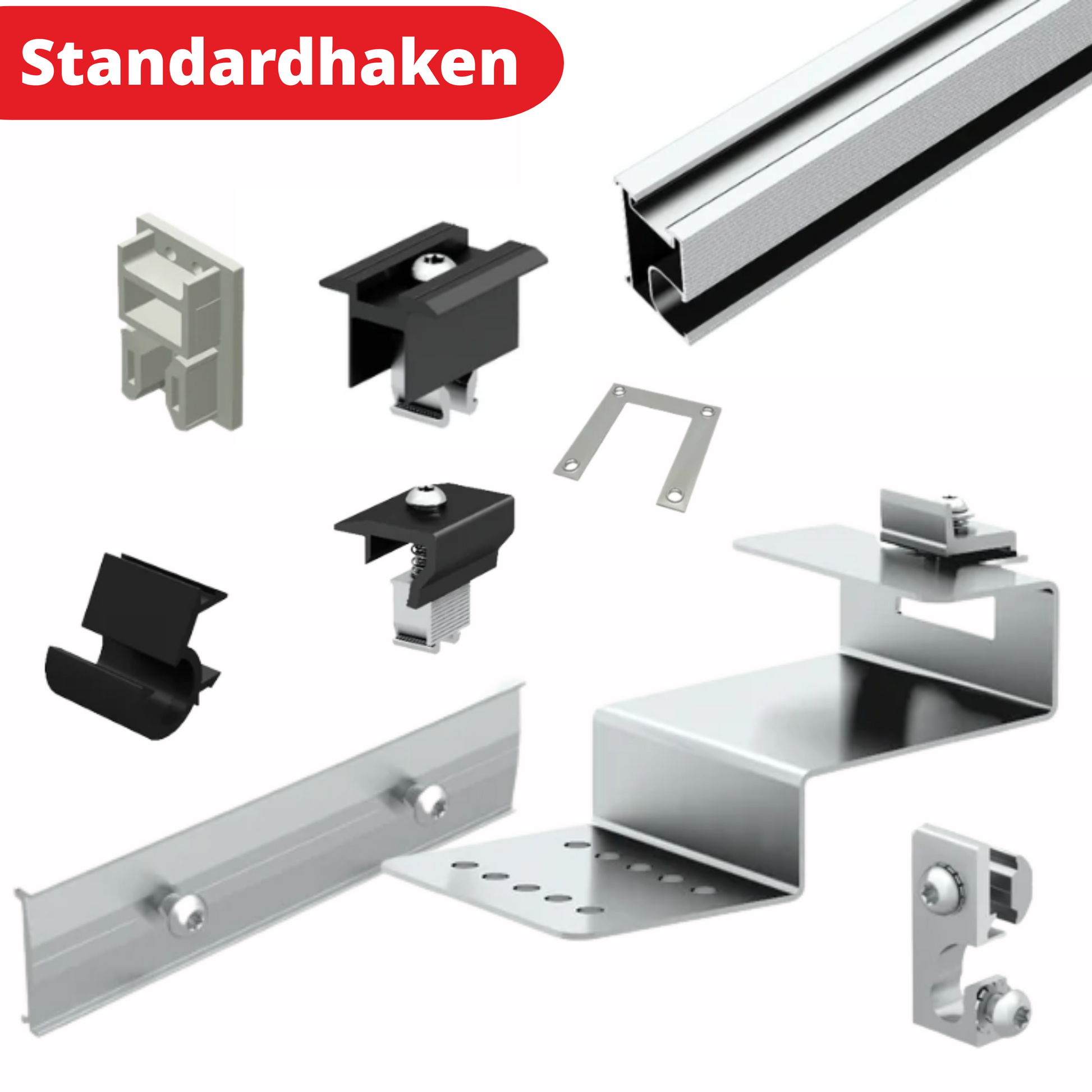

The standard roof hook included in the set is suitable for most common roof tiles (e.g. trough, hollow-lock and concrete tiles) up to an overlap of approx. 128 mm.

The complete set contains all essential components for standard installation on flat roofs.

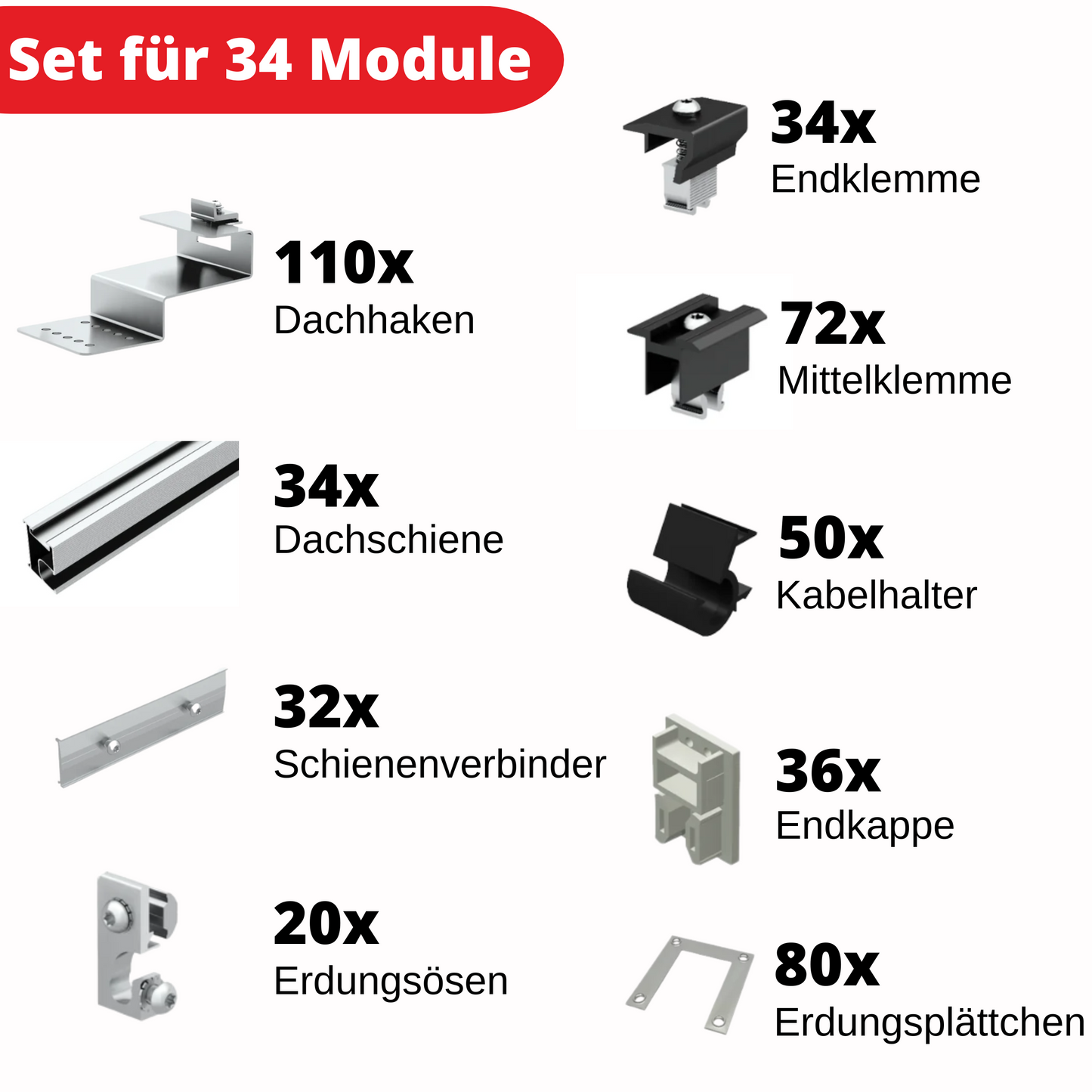

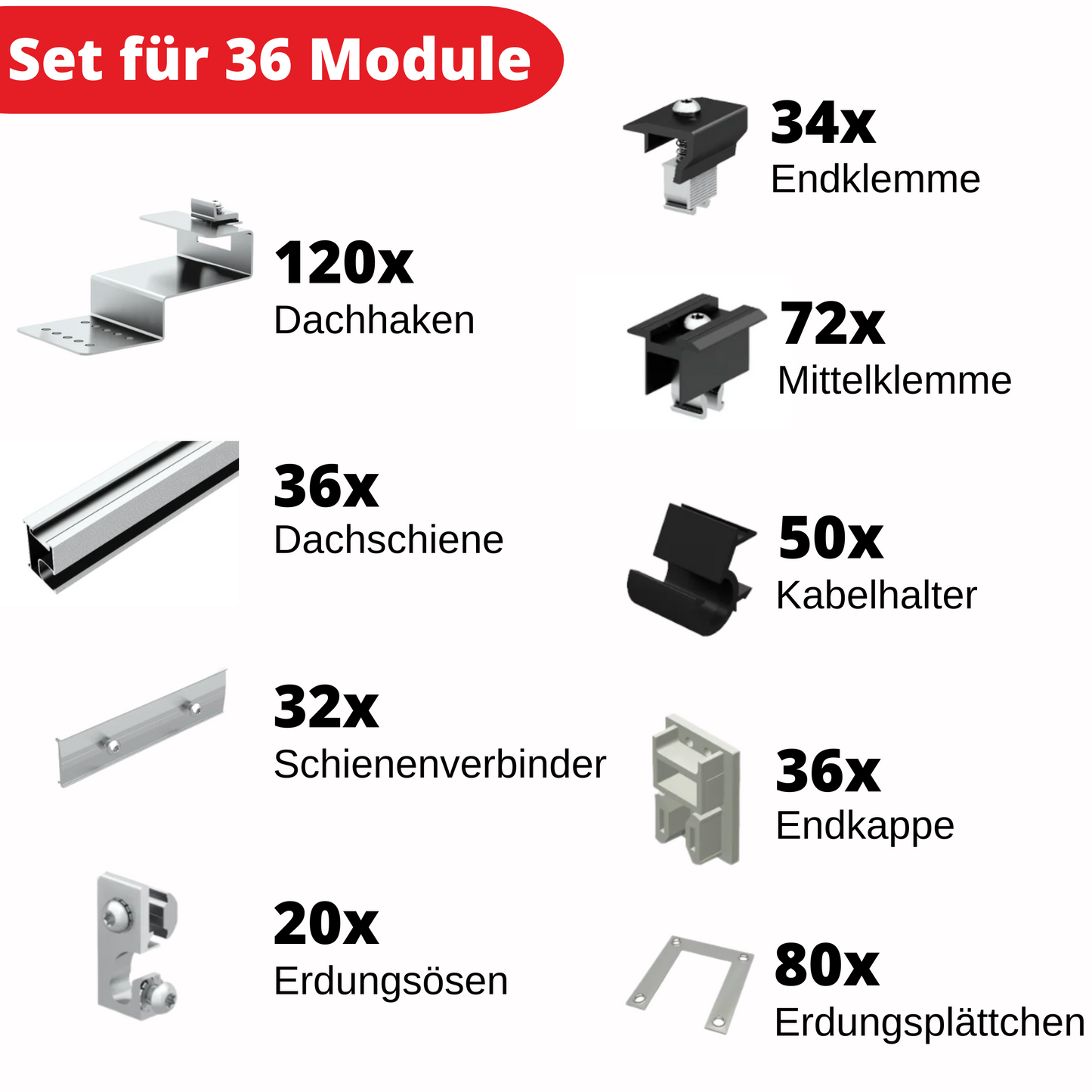

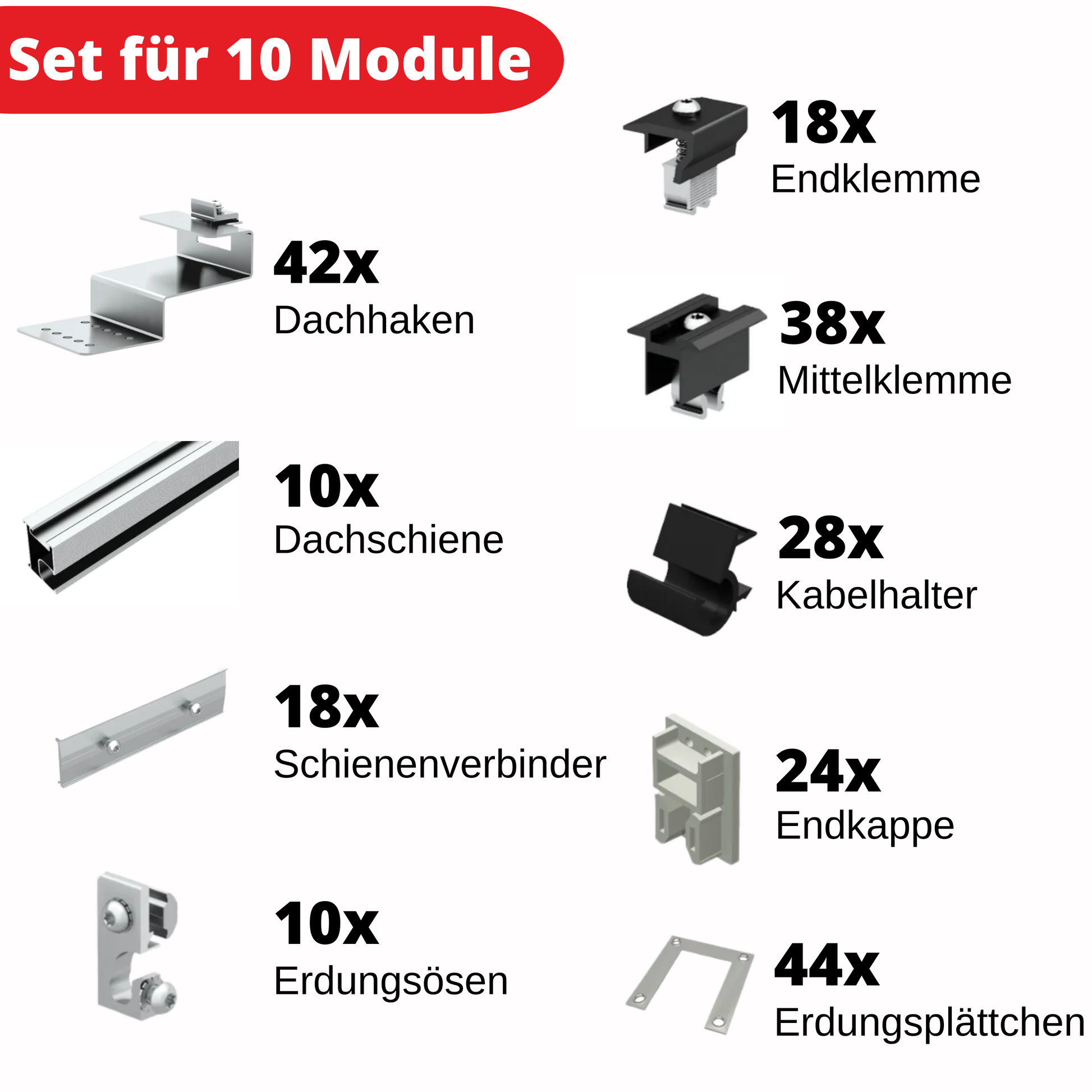

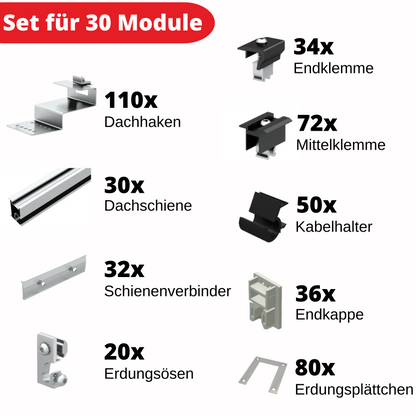

The Flat hook suitable for smooth concrete tiles. (please see the respective set picture for the exact number of pieces):

Roof hook (steel - zinc-coated, 3 mm thick) including screws

Roof rails (aluminum, 238 cm)

Rail connectors

Middle clamps

End terminals

End caps

Cable holder

Grounding lugs

Grounding plate

We would be happy to assist you in selecting the right substructure.
Just contact us – we will help you!
