Felicity Solar Inverter 10 kW

T-REX-10KHP3G01

Eco, Smart, Sustainable

✅ 10 kW ✅ High voltage ✅ Hybrid

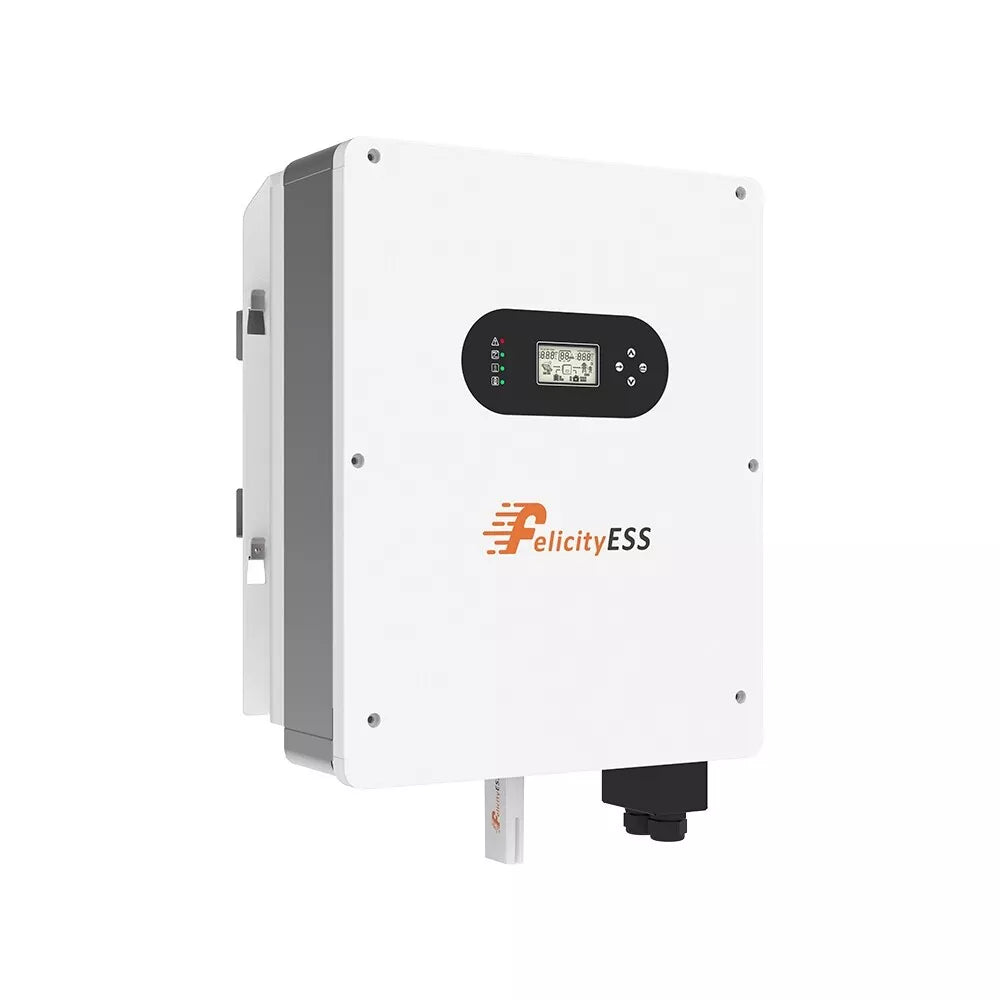

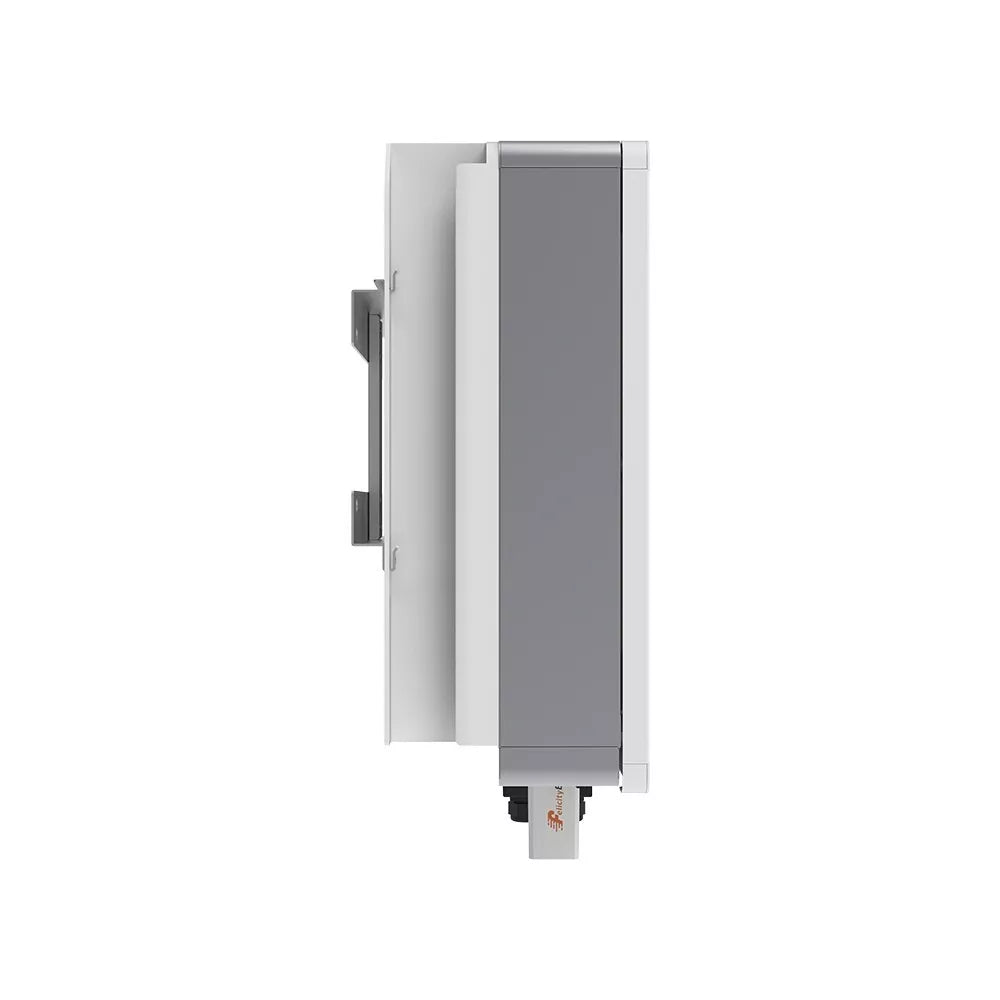

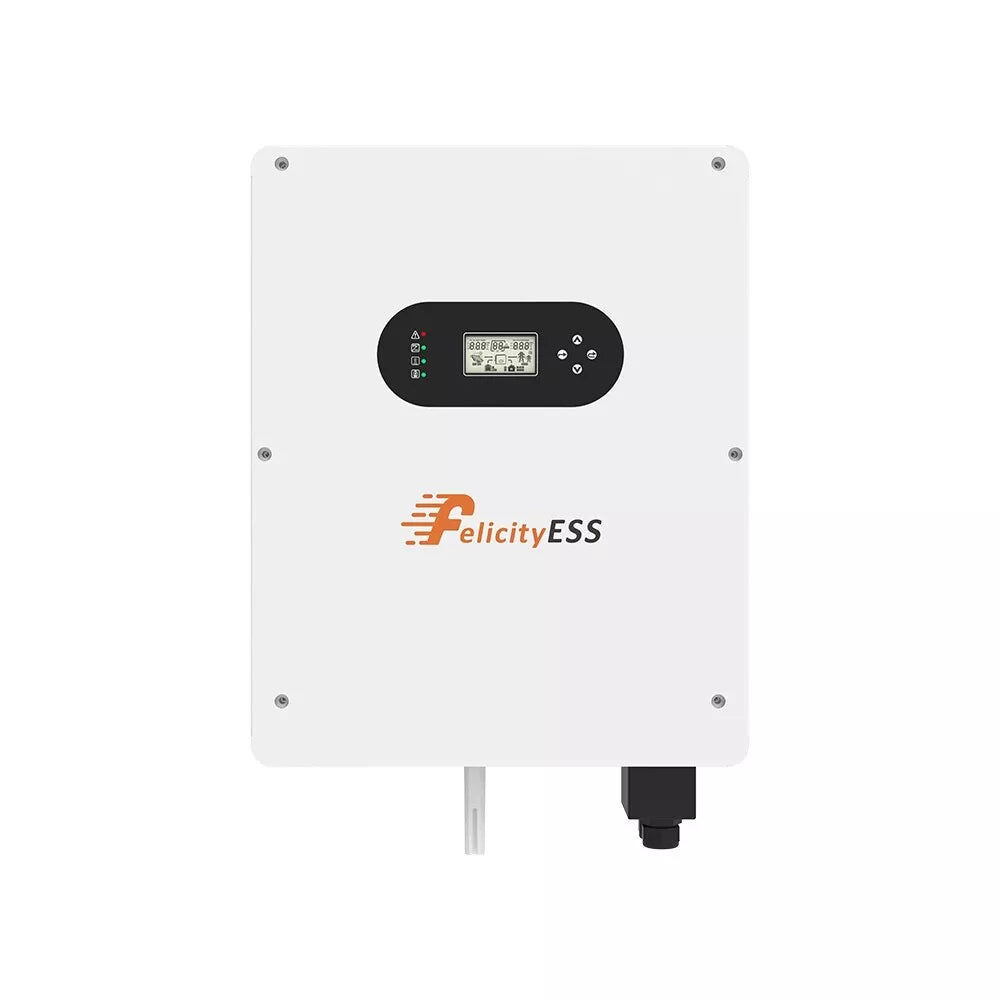

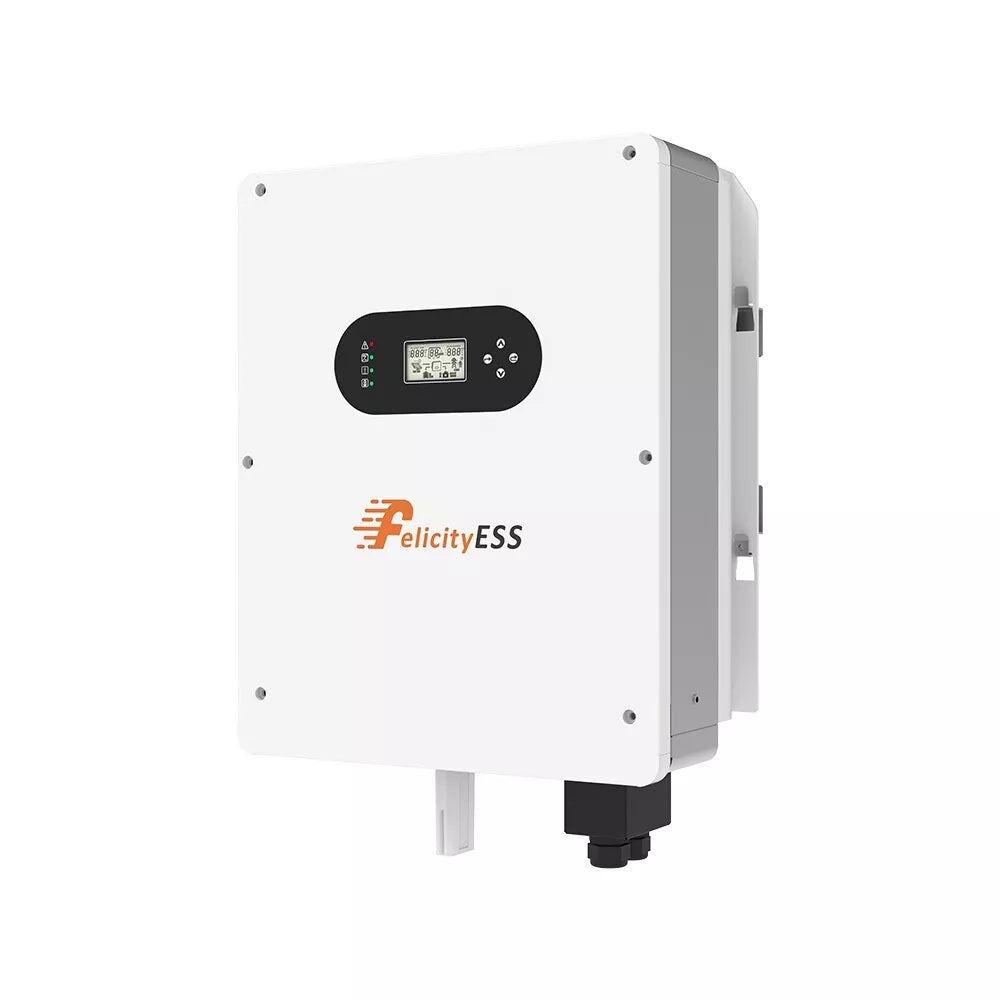

The Felicity T-REX-10KHP3G01 is a powerful three-phase hybrid inverter for high-voltage batteries with 10 kW output power , 13 kWp PV input and two MPPT trackers .

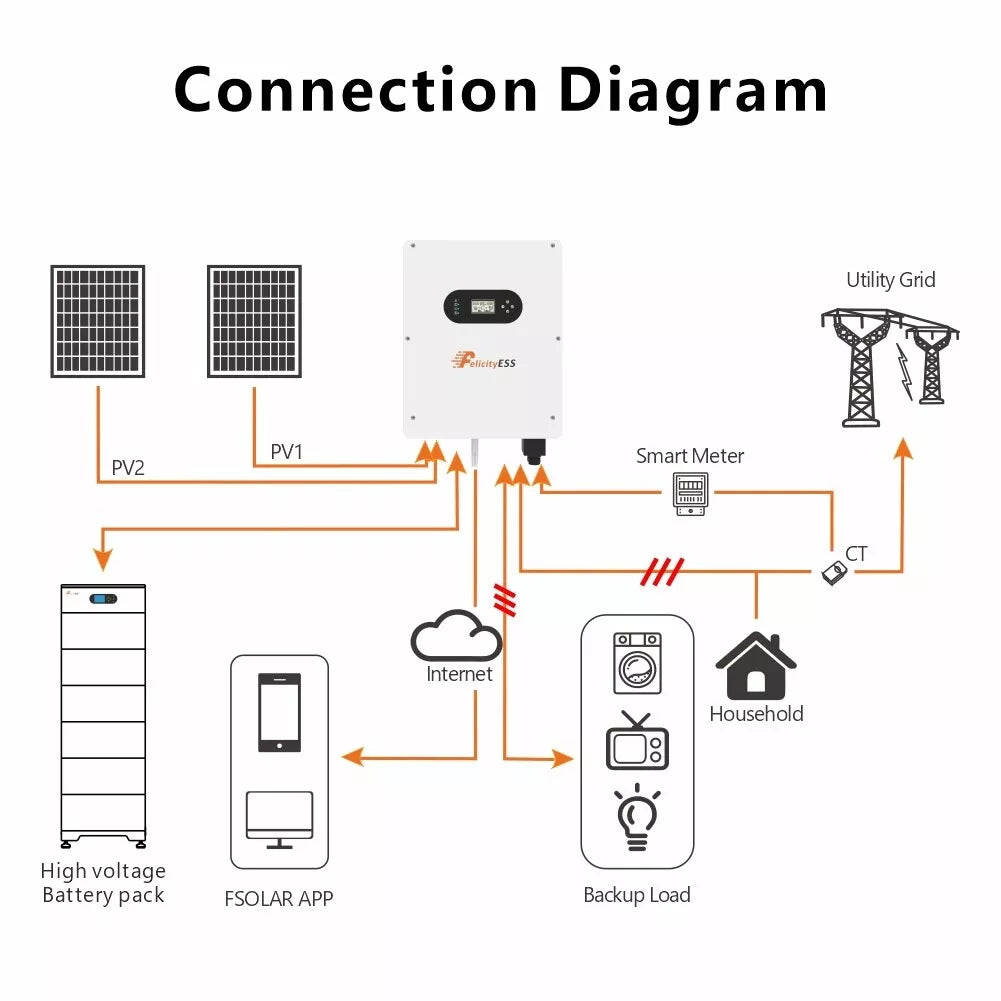

It supports new PV systems and AC coupling, operates in parallel or off-grid configurations (also with a generator), and provides uninterruptible power supply (UPS) in the event of a power failure (<20 ms). A wide voltage range (PV: 200–850 V, battery: 180–580 V) enables high flexibility.

The integrated Wi-Fi/GPRS interface allows for remote monitoring, and the IP65 housing provides reliable outdoor protection. Manufacturer Felicity Solar is an experienced provider with a global presence and a focus on innovative, sustainable energy solutions.

⚡ AC coupling for retrofitting

Perfectly suited for expanding existing PV systems with battery storage

🔋 Supports high-voltage batteries
Compatible with lithium and lead-acid batteries from 180 V to 580 V

🔄 Automatic UPS function
Seamless switching to battery operation in the event of a power failure – in under 20 ms

🔌 25 A charge/discharge current
Efficient energy processing for high-performance storage solutions

⚙️ Generator compatible
Can also absorb and store energy from a diesel generator

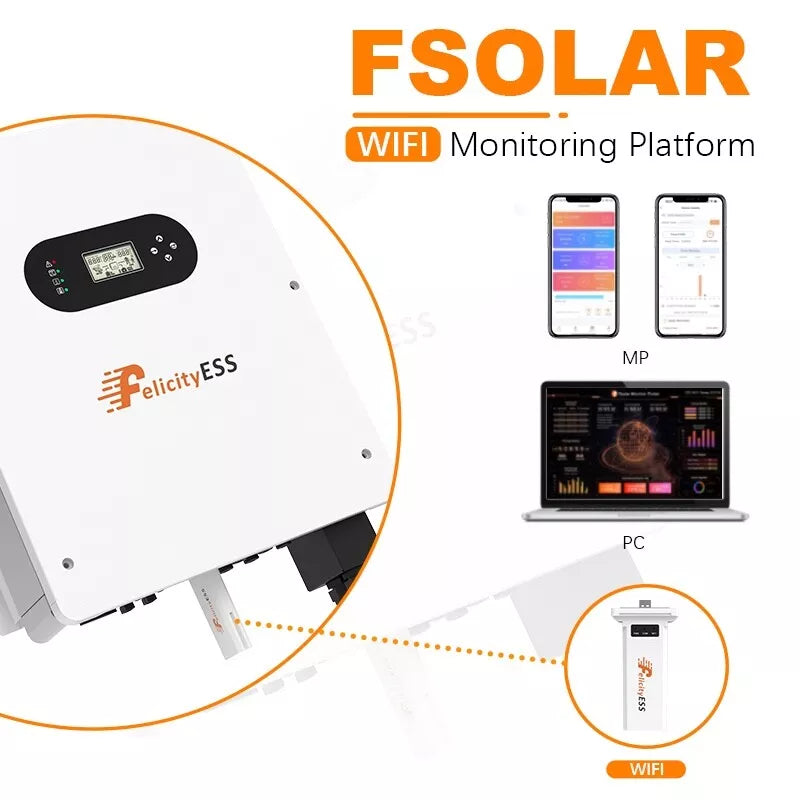

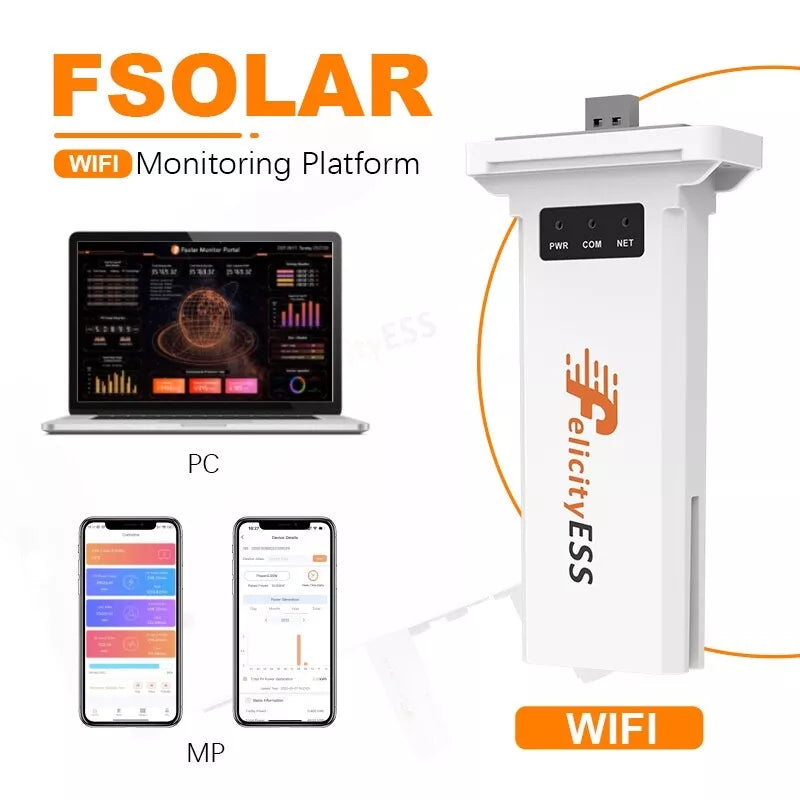

📶 Wi-Fi & Mobile Monitoring
Full control and real-time monitoring via app or online platform

🌍 Versatile communication
With RS485, CAN, GPRS – ready for smart metering & energy management systems

💧 Protection class IP65
Dustproof and splash-proof – perfect for indoor and outdoor use

🕒 Long warranty period
10-year manufacturer's warranty

Technical details

Battery input:

• Battery voltage range: 180–580 V
• Max. charge/discharge current: 25 A
• Max. charge/discharge power: 10,000 W
• Compatible batteries: Lithium / Lead-acid

PV side (DC input):

• Max. recommended PV power: 13,000 W
• Max. PV voltage: 900 V
• MPPT voltage range: 200 – 850 V
• MPPT voltage range for full load: 450 – 850 V
• Nominal input voltage: 720 V
• Starting voltage: 160 V
• Max. input current per MPPT: 15 A
• Max. short-circuit current per MPPT: 18 A
• Number of MPPT trackers/strings: 2 / 1


AC output (on-grid):

• Rated voltage: 230 / 400 Vac (3-phase)
• Frequency range: 50 / 60 Hz
• Voltage range: 184 – 264.5 V
• Max. output power: 10,000 W
• Rated AC output current: 14.5 A
• Max. output current: 18 A


Efficiency:

• Efficiency (max.): 97.6%
• Euro efficiency: 97.0%
• MPPT efficiency: 99.9%


Generally:

• Communication: RS485, CAN, Wi-Fi, GPRS
• Display: LCD + LED
• Protection class: IP65
• Operating temperature: –25 °C to +60 °C (power reduction from 45 °C)
• Weight: approx. 35.3 kg

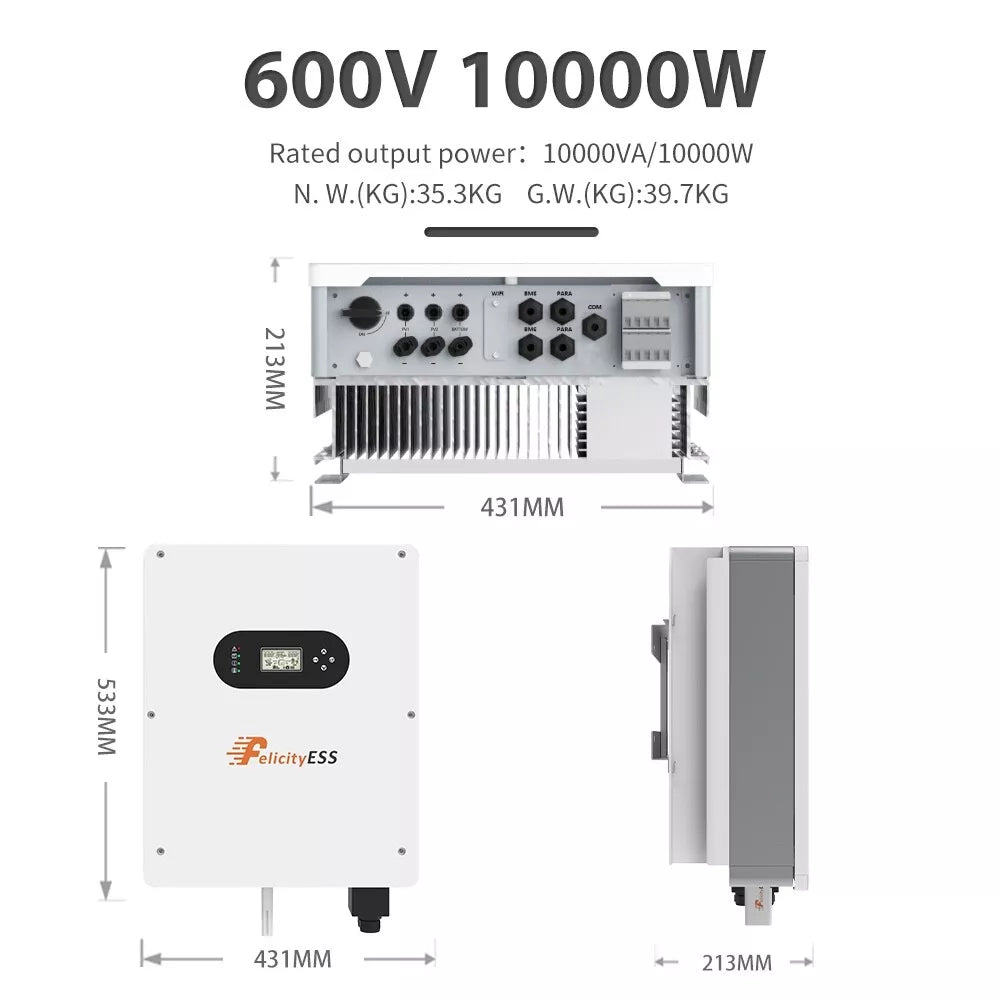

• Dimensions: 533 × 431 × 213 mm (W×H×D)

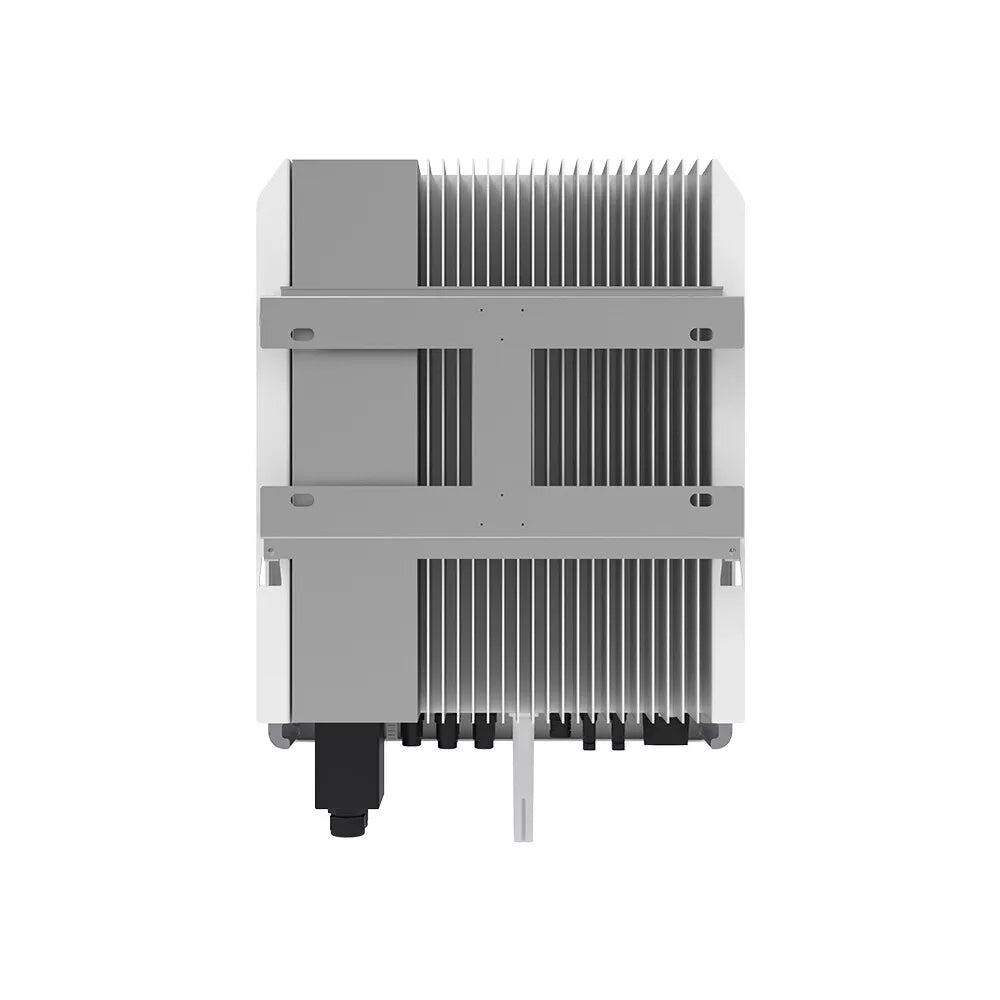

• Mounting: Wall mounting
• Warranty: 10-year manufacturer's warranty


For further technical data, please refer to the product data sheet

Scope of delivery

• 1x Felicity ESS T-REX-10KHP3G01 10kW

----------------------------------------------------------------------------------------

Felicity Solar is an internationally experienced manufacturer focused on modern, sustainable energy solutions. Since 2007, the company has been developing innovative PV technology and energy storage solutions for customers worldwide.

----------------------------------------------------------------------------------------
